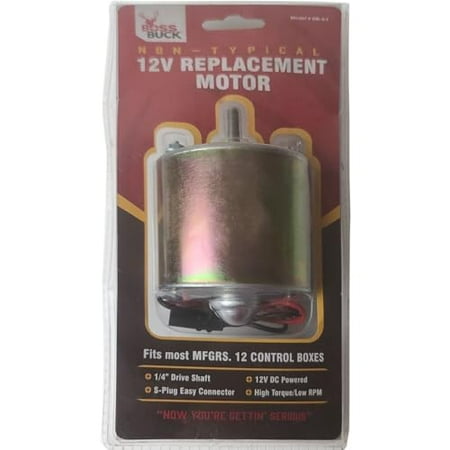

Product Description BOSS BUCK LARGE HEAVY-DUTY MOTOR 12V: Introducing the Large Heavy-Duty Motor 12V for Game Feeder by Boss Buck engineered to deliver reliable performance and durability for your wildlife feeding needs. This motor operates on a robust 12-volt PM DC system. With a 1/35 horsepower output this motor generates an impressive RPM of 2942 @ 2 amps dispensing feed across your feeding area. The motor features a sturdy 1/4 x1-1/16 shaft built to withstand the rigors of outdoor use. During startup the motor draws 4 1/2 amps and consumes 3 amps when running balancing performance with energy efficiency to optimize battery life and operations. Mounting studs size 10-32 x5/8 long and spaced 2.36 apart for straightforward installation onto your feeder. The S-Plug Easy connector simplifies wiring for easy setup and maintenance. With dimensions approximately 3 W x 3 T and 2 3/8 between the two bolts on top it offers a compact footprint while providing ample power. MAIN FEATURES: -12 Volt PM DC; -1/4 x1-1/16 Shaft; -1/35 Horsepower; -RPM 2942@2 amps; -Draws 4 1/2 amps at startup 3 when running; -Mounting studs are 10-32 x 5/8 long and are 2.36 apart; -Dimensions approximately: 3 Wx3 T; -2 3/8 between two bolts on top of moto; -Plug Easy connector. From the manufacturer About BOSS BUCK: For the past quarter century Boss Buck has been dedicated to the development & production of the most innovative game feeder systems; Feeders are designed to fulfill the requirements of everyone involved with wildlife. Lid-55 Gallon Slip On Fits most 55-gallon drums Wind rain and critter resistant 18-gauge steel Size: 23-3/4 I.D. x 3 Deep Funnel-55 Gallon Fits most 55-gallon drums Built in Downspout is 1-15/16 O.D. x 1-1/2 Long Measures 22.375 O.D. x 7.75 Deep Constructed of 20-gauge galvanized steel Barrel Band Fits Plastic or Metal 55 Gallon Drums 20 Legs Included Easily installs in minutes The square tubing legs go with pipe from 1 1/4 ID and larger Ozonecam Bracket Quick connect ball SS304 Power knob UV stable Fits the following: – Box blind window flat surface – Feeder leg square tube up to 1.5 – Ground blind round surface – Feeder leg round tube Tripod Header 6 x 6 x 1/2 Plate Steel Top 9-1/2 Pipe Legs Diecast Eyebolts (Holds up to 1000 lbs.) Heavy Duty Pulley Accepts 1-5/8 Pipe or Smaller Wingnut is M8 x 20MM (metric) 1200 LB Winch Gear Ratio: 4.1:1 Diameter of Cable: 4.5mm (a little over 1/8 ) Length of Cable: Over 26 Ratchet Style: 1-Way Cable & Hook Included Mounting Bolts NOT Included! Hanging Bail for 55 Gallon Drum Attaches easily to a 55 gallon barrel 1000 LB Pulley and Mounting




Boss Buck Large Heavy-Duty Motor 12V – Versatile Hunting Game Feeder Feed Dispension Device with S-Plug Connector for Automatic Feeding Kit
Original price was: $53.30.$34.65Current price is: $34.65.
